DOUBLE ROTARY RAKES TRAILED 680-800 / /

cardan shaft included

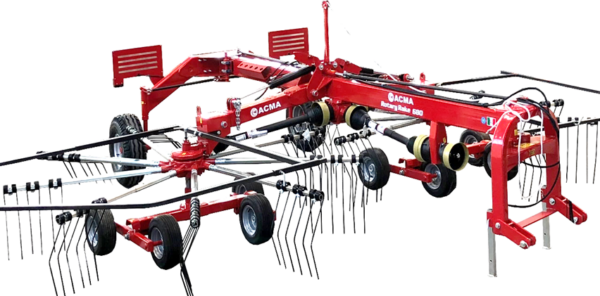

Semi-trailed rake GD680-800 with two oil-bath rotors and hydraulically adjustable working width from 6.2 to 7.0 meters or in the model 800 from 7,2 to 8 meters which also collects the forage in the centre, CENTRAL HAY WINDOW WORK, ideal machine for medium-big sized farmers.

MODCODDESC
Larghezza Lavoro / Working width
kg
GD/680/184532187018 bracci / arms54620 - 700 250900
GD/680/224532187522 bracci / arms88620 - 7002501080
GD/800/224532228022 bracci / arms88720 - 8002501200

hydraulic regulation of working width

Standard Fittings

  • Sterring attach
  • 8 wheels size 16″
  • Oil bath gearbox
  • Hydraulic closing of the gearboxes
  • Manual working depth
  • Rear light and signal
  • Arm’s tube “lemon” profile

Application Fittings

  • 4996312 tractor’s cardan homocinetic
